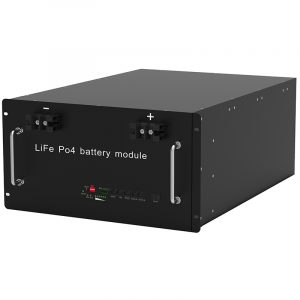

LiFePO4 Battery 48V 150AH

Model:GRD-JJ48V150AH-
Capacity: Optional 150Ah 180AH 200AH
Voltage: 48V
OEMOptional colors and customized brands
USES: hospital, bank data center, base frame type home,
enterprise energy storagebackup power supply, wind complementary system,
office, military, base station and other uninterrupted energy storage power supply.



Product Description:

Durability: The durability of LiFePO4 Battery is powerful and consumption is slow. The time of

charging and discharging is more than 2000times. After 2000times circulation, the capacity of

the battery is still more than 80%.

Discharge rate: LiFePO4 battery can discharge with maximum current , it is used in electric

vehicles and electric bicycles.

Weight: LiFePO4 is light. The weight is just 1/3 of lead-acid cell with the same capacity.

Volume: The capacity of LiFePO4 battery is bigger than lead- acid cell with the same volume.

With the same capacity, LiFePO4 battery volume is only two thirds of lead-acid.

No memory effect: No matter the LiFePO4 Battery is in which conditions, it can be charged and

discharged whenever you like, no need to discharge totally then charge for it.

Environmental protection: Lithium materials not have any poisonous and harmful substance.

It is regarded as green and environmental protection battery. The battery has no any pollution

no matter in the process of production or in the process of using.

Security: LiFePO4 battery passed the strict safety testing, with higher safety performance.

Well graded and combination. After multi-selection, to ensure each cell qualified with long life;

The connection tech of all interface, be safe and durable, with simple maintenance.

Multi-layer protection structure, could be waterproof, shockproof, anti explosion and fire.

Various joints, could be customized, safe and durable for long run.

Security and reliability,compared with lead-acid battery, the materials of LiFe PO4 is the securest,

the best choice of solar energy storage battery.





48V 150Ah 5KWh Solar System Lifepo4 Battery with RS485 Communication Protocol Off-grid inverter by-pass

Lithium Battery Power 48V 150Ah Lithium Ion Battery is one of our top-selling products.

Features of Delongtop LiFePO4 Lithium-Ion Battery : This is a highly versatile deep cycle battery built on patented Lithium Iron

Phosphate (LiFePO₄) chemistry. The LFP-48100 features a built in battery management system (BMS) that keeps the battery running at

peak performance while preventing overheating, overcharging, and maximizing cell cycle life.

★Internal BMS (electronic chip) monitors battery in real time and alarms the user if any voltage or capacity abnormalities are detected.

★At only half to a third of the weight of a Lead Acid battery, LiFePO4 is the ideal choice for Marine, RV, Golf Carts,Motorcycles and Off-Grid applications.

★Without any corrosive or harmful heavy metals, Our lifepo4 lithium Batteries are more environmentally friendly than SLA batteries.

★LiFePO4 batteries have a low discharge rate and long service life, with an average life expectancy of about 5 to 10 years.

LIFECYCLES (BATTERY LIFESPAN) Up to 85% capacity for 3,000 cycles in recommended conditions- 8,000 times(40% dod)

Structure of 48V 150ah Lifepo4 Battery:

48V(51.2V) 150Ah lithium battery = premium Grade A 3.2V LifePo4 battery cells + high-quality BMS + oem metal case+ LCD screen(display) +handle

tel:86-755-23121236

Product features

Product Description: 1. Model Number: GRD-JJ48V150AH- 2. Nominal Capacity: 150Ah 3. Nominal Voltage: 48V 4. MAX Charge Voltage: 54.75V 5. MAX Charge Current: 75A 6. Customization Support: Including voltage, capacity, current, size, appearance, etc.     Features: Maintenance-free operation; The long service life of 10~15 years; Inbuilt BMS multiple security protection; High-quality lithium iron phosphate batteries, safe and reliable; More rechargeable time, longer lifetime, economic and environmental protection.     Light in weight: LiFePO4 substitution battery is only approx. 1/3 of lead acid battery in weight; Environmentally friendly: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use. Long Cycle Life: This battery is with over 2000 time charge and discharge cycle life, after that, capacity left is still 80% of original value, self discharge rate is much lower than li-ion battery and lead-acid battery; Customized &Save Time: Battery cells, size, capacity, voltage, connector…most parameters can be changed according to your request. You don’t need to take too much time to search an exist model. Product Advantages: 1. Iron Phosphate-lithium power battery 2. Long warranty period: 5years 3. >6000 cycles Reliable Performance 4. Support 6PCS LPBF in parallel mode for expansion. 5. Convenient CAN&RS485 Communication 6. Photovoltaic system:this battery pack is designed for household photovoltaic systems.   NEW from Geerady Power! This 48 Volt 150 AMP lithium iron phosphate (LiFePO4) industrial deep cycle battery is packed with power. The battery delivers efficient power for battery systems requiring large amounts of power at 48 Volts. The Geerady Power 48V 150 amp has large amp capacity in one battery and eliminates the need for multiple batteries without losing amperage. Compared to other battery technologies, this battery delivers large amounts of power, at half the weight and provides up to 8 times more battery cycles and no memory problems. Loaded with automatic safety features, such as a Battery Management System (BMS), which maintains individual cell integrity, low and high voltage protections, reverse polarity and temperature management. The battery also uses automatic cell balancing, requires almost no maintenance and includes RS485 and CAN monitoring.Replaces multiple battery banks, eliminates multiple cables, full amp capacity and NO memory problems!     Key Features High cycle life and deep cycle abilityHigh reliability High cycle times and longer service life of >6000 cycles @80% DOD ; Superior DOD (100% over lead acid bateres;Excellent high temperature performance, ultra low life decay rate in operating when harsh environment; Ultra low self discharge rate <1.5%/month; More usable capacityUser friendly bms LFP provides 100% of usable energy, so that you can discharge the battery entirely without causing downtime of your solar site, saving cost of diesel generator fuel.User friendly BMS monitors and communicates regarding the SOC, SOH, protects the system from short-circuit, high and low discharging and charging, high temperature etc. Faster chargingEasy installation Charges much faster than sealed lead acid batteries, giving you access to reliable power quicker to continue your operation. Can fully charge within 2-3 hours which is impossible for VRLA.EverExceed LFP batteries are designed to be drop-in replacement for sealed lead acid batteries without additional labor cost. High dischargerateSuperior deep cycle ability Ability to deeply discharge the battery at a high rate of discharge while maintaining a high energy capacity.Excellent PSOC (partial stage of charge) cycle life, which is the best ideal choice for solar energy storage; Optimized for photovoltaic applications, using high temperature and high cycle life active materials;

Applicable field

Application 1)Energy Storage: PV Energy Storage, UPS, backup, power station; 2)EV: Golf trolleys, Electric scooters; 3)Solar System: Solar Home System, Solar Street Light, Solar CCTV 4)Telecommunications Base Stations; 5)Others: Emergency Light, Miner’s lamp, portable power supply, digital products, Roboticsetc, AGV/RGV/AMR, etc.

product parameters

No. ProjectParameter
1Batteries materials:Lithium iron phosphate
2Lithium iron phosphate15S2P
3Nominal voltage:48V
4Nominal capacity:Optional 150AH/180AH/200AH
5Size(mm):500*440(482)*260
6Weight:76.5kg
7Color: Optional
8Parallel support:Parallel terminals are supported
9Output port mode:terminal
10Charging way:CC/CP/VP
11Charging current:0.2C(standard)
12Maximum charging current:Max0.45C @25℃
13Charge cut-off voltage:54.75V/CELL
14Discharge way:CC/CP/VP
15Discharge current:0.45C
16Maximum discharge current:Max0.45C @25℃
17Discharge cut-off voltage:42V
18Charging operating temperature:charging:0~+50℃
19Discharge operating temperature:discharge:-20~+55℃
20The quality assurance period:24 months
21Applicable scope: hospital, bank data center, base frame type home,
enterprise energy storagebackup power supply, wind complementary system,
office, military, base station and other uninterrupted energy storage power supply.
Shenzhen geerady Electronic Technology Co., Ltd. was established in 2018, which is affiliated to the foreign trade branch of the general factory. Its headquarters is located in Shenzhen, Guangdong, China, and its factory is located in Dongguan, Guangdong, China. We are a high-tech enterprise engaged in R&D, manufacturing and marketing of notebook /Macbook batteries. We have professional R&D, sales and service teams and first-class manufacturing bases and testing equipment. The most important thing for us is your satisfaction. Good quality and good service are the engines of our development. After years of marketing and purchasing, our team has established a good relationship with customers. We sincerely hope to establish friendly business relations with friends at home and abroad.   Why choose Geerady: 36 months longer warranty time OEM/ODM custom is acceptable without MOQ Request Made of industrial Grade original MANLY factory lifepo4 battery cell with Factory price With advanced smart BMS (Battery Management System) Packing & Delivery: Packaging: 1) Carton box -pallet-container. 2) Packaging also can be customized by customers’ requirements. Shipping: 1) Shipping time for news sample is 25-30 working days; mass production is 15~20 working days – since deposit received and samples confirmed. 2) Sample order is supposed to be shipped by DHL, UPS, FedEx, or TNT, mass order is suggested to ship by sea, we could supply forwarder service if you need. Our Services: OEM & ODM can customize according to your request : Battery voltage, capacity, and dimension. BMS charging and discharging current. Connector, case, and wire. Your own logo eg: silk print. After-sales service is available : Respond in 24 hours to any inquiry on our product. Take action quickly for a normal customers’ claim within 12 hours. Good after-sales service: We offer 3 years quality warranty for lifepo4 batteries 12.8V 20Ah/50Ah/100Ah/200Ah/500Ah/1000Ah/… One by one tested before shipment.     FAQ: Q1: Are you a manufacturing factory? A1: Yes, We are a lithium battery manufacturer from China since 2007. You are welcome to visit our factory and production process. If the quantity is suitable, we accept OEM/ODM. Q2: What’s your product range? A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, UPS, RVs, etc. Q3: What is the production time for your lithium battery? A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity. Q4: Can I buy one or two units for the sample first? A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order. Q5: How do you guarantee the quality? A5: Always a pre-production sample before mass production. Always final Inspection before shipment. Q6: Why we can choose you? A6: Reliable-- Our certifications like MSDS, UN38.3,CE is our commitment to quality and safety for our lithium batteries. Professional--We provide battery solutions and technical support for more than 10 years. Factory-- We have factory, so have competitive price.   Q7:What is LiFePO4 battery 48V? A7:Geerady Systems offers a range of 48V Lithium-Ion battery pack to meet most of our customer needs (up to 192V). PowerBrick®+ battery offer a high level of safety through the use of cylindrical cells in Lithium Iron Phosphate (LiFePO4) technology. Each PowerBrick®+ embeds a BMS (Battery Management System) inside its casing. PowerBrick®+ solutions advantageously replace lead batteries, offering more than doubled capacity for half weight and footprint. Each battery has a 51.2V nominal voltage and can be assembled in series (4S maximum) and parallel (up to 16P) to reach operating voltages from 48V, and up to 192V.. For applications requiring higher voltage or energy, see PowerModule advanced systems. PowerBrick+ battery is enclosed in a sealed ABS case, resistant to moisture and dust (IP 55 or IP 66). PowerBrick+ are lightweight, reliable and environmentally friendly solutions for multiple usages. These batteries can take place for direct Lead-Acid batteries replacement. Even if battery charge can be performed by most Lead-acid chargers, we advise to use a dedicated Lithium-ion charger. Key facts 48V battery pack – Lithium Iron Phosphate (LiFePo4) New high performance sealed cylindrical cell 3000 cycles at 100% DoD at 1C 4500 cycles at 80% DoD at 1C 98% energy efficiency Nominal voltage : 51.2V Serial assembly can range from 48V to 192V (4S max recommended) Parallel assembly up to 16P (16 PowerBrick+ in parallel) High safety with advanced built-in Battery Management System Compatible with most Lead-Acid chargers Robust design in an isolated and waterproof case (IP 66) Operating temperature in charge : 0°C à +45°C at @60±25% relative moisture Operating temperature in discharge: -20°C à +60°C at @60±25% relative moisture Sealed case (IP 55 or IP 66 protection) 100% maintenance free RoHS et UN38.3 certification
  • Key facts
  • 48V battery pack – Lithium Iron Phosphate (LiFePo4)
  • New high performance sealed cylindrical cell
  • 3000 cycles at 100% DoD at 1C
  • 4500 cycles at 80% DoD at 1C
  • 98% energy efficiency
  • Nominal voltage : 51.2V
  • Serial assembly can range from 48V to 192V (4S max recommended)
  • Parallel assembly up to 16P (16 PowerBrick+ in parallel)
  • High safety with advanced built-in Battery Management System
  • Compatible with most Lead-Acid chargers
  • Robust design in an isolated and waterproof case (IP 66)
  • Operating temperature in charge : 0°C à +45°C at @60±25% relative moisture
  • Operating temperature in discharge: -20°C à +60°C at @60±25% relative moisture
  • Sealed case (IP 55 or IP 66 protection)
  • 100% maintenance free
  • RoHS et UN38.3 certification
Q8:Which is better LiFePO4 vs lithium ion battery? A8:The LiFePO4 battery has the edge over lithium ion, both in terms of cycle life (it lasts 4-5x longer), and safety. This is a key advantage because lithium ion batteries can overheat and even catch fire, while LiFePO4 does not. Q9:What is the maximum voltage of LiFePO4 battery? A9:In the case of LiFePO4 chemistry, the absolute maximum is 4.2V per cell, though it is recommended that you charge to 3.5-3.6V per cell, there is less than 1% extra capacity between 3.5V and 4.2V. Q10:How long does a 48V lithium ion battery last? A10:about two to three years The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first.       Attention: The lithium battery is the dangerous electric product ,so the shipping freight is higher than the normal product. some country or zone maybe the lithium battery only can be shipped to the ocean prot or airport , so need you consult the seller. Before you paying the order, you should see the technical parameter carefully and confirm the inverter / automatic voltage regulator / stabilizer / solar controller / transformer / uninterrupted power supplier (UPS) can meet your requirement and solve your problem. Besides, tell me the specification and parameters of what you want to buy; the express address to calculate the shipping freight; the input voltage range and rated output voltage. Lithium Battery/Battery pack: if you want to buy, please tell us the below parameters: Where do you need the battery pack used for ? What’s the type of the load ? (AC or DC?) if the load is AC, do you need the inverter? What’s the capacity of the total load? (xxx W /xxx KW) What’s the rated capacity of battery do you need ? (xxx KWH) What’s the output rated voltage of battery do you need ? (12V? 24V? or 48V?) Do you have any requirement for the charge and discharge current ? What’s the current respectively ? Do you have any requirement for the battery dimension and weight ? Where do you decide to use the battery ? Indoors or outdoors ?
