Location: HOME > products > 72V 100AH 120Ah 150AH 180AH 200AH Power LiFePO4 Battery

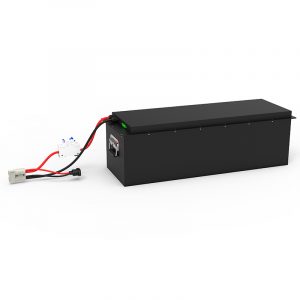

72V 100AH 120Ah 150AH 180AH 200AH Power LiFePO4 Battery

Model:GRD-DL72V100AH
Capacity: Optional 100AH/ 120AH/ 140AH / 150AH /180AH /200AH
Voltage: 72V
OEMOptional colors and customized brands
USES:four-wheel low speed vehicle,
two-wheel vehicle, tricycle, electric motorcycle.

Attractive Design

Rosen Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation.

To welcome the world cooperation we accept OEM with your logo design!

Wide Application

Rosen Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Rosen Powerwall has won global approval!

Rosen Powerwall design belongs to Rosen patent. Rosen reserves sole and only right for sales of it’s powerwall.

Integrated Function

Rosen Powerwall can be installed in parallel with combiner box for protection, with it’s integrated BMS communication protocol to comprehensive hybrid and off grid inverters!

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.

tel:86-755-23121236

Product features

Applicable field

product parameters

No.ProjectParameter
1Batteries materials:Lithium iron phosphate
2Series parallel mode (S series, P parallel):23S1P
3Nominal voltage:73.6V
4Nominal capacity:100Ah
5Size(mm):680*225*220
6Weight:54.5kg
7Output port mode:Anderson
8Charging way:CC/CV
9Charging current:0.2C(standard)
10Maximum charging current:Max1C @25°
11Charge cut-off voltage:83.95V
12Discharge way:CC
13Discharge current:0.5C
14Maximum discharge current:Max1C @25°
15Discharge cut-off voltage:64.4V
16According to:LCD
17Charging operating temperature:charging0~+50℃
18Discharge operating temperature:discharge-20~+55℃
19The quality assurance period:24 months
20Scope of application: four-wheel low speed vehicle,
two-wheel vehicle, tricycle, electric motorcycle.
